Evacuation Stair Chair NF-W5

The Aluminum alloy evacuation stair chair is specially used for emergency transfer of patients on stairs or confined spaces. The chair is light in weight, foldable, and easy-to-use, It can easily slide down the stairs by the track to help persons with reduced mobility quickly and safely evacuate.

In emergency situations such as fire, earthquake, or power outage, elevators should not be used in multi-storey buildings, so disabled or injured people may be trapped. The NEWFELLOW evacuation stair chair is specially designed for rapid transportation in emergency situations.

What's Included:

  • 1 Evacuation Stair Chair NF-W5
  • 1 Safety Belt
  • 1 Head Restraint
  • 1 The M4 Allen wrench
  • 1 User Manual (Pdf file)

Scope of application

  • The evacuation stair chair is used as an ideal rescue equipment for escaping in emergency situations such as fire in high-rise buildings;
  • It is also suitable for airplanes, ships and narrow corridors or stairs.

Technical features

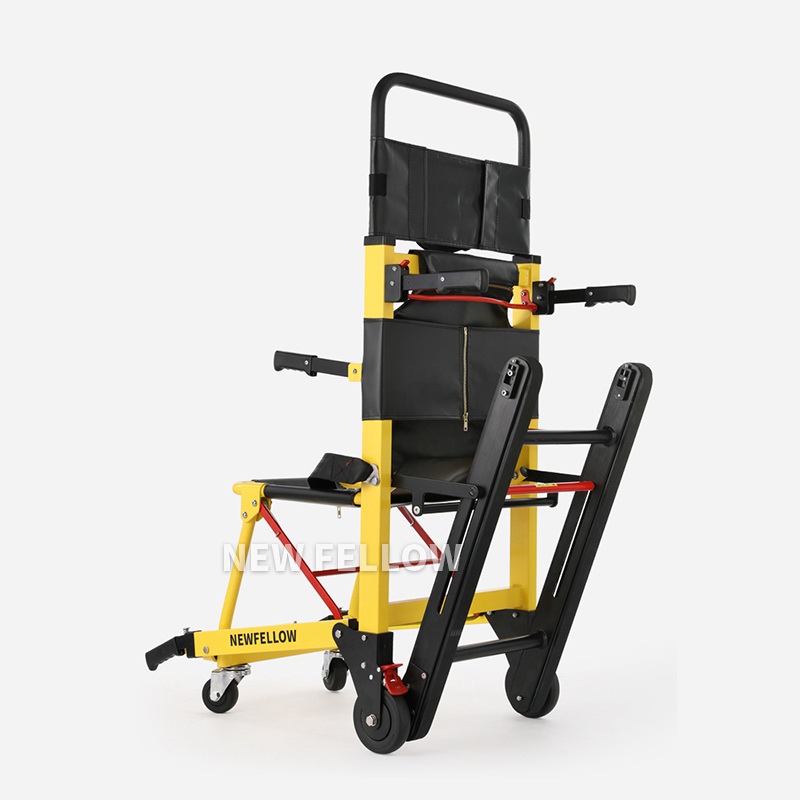

  • With track, only one person can pushdown the Chair;

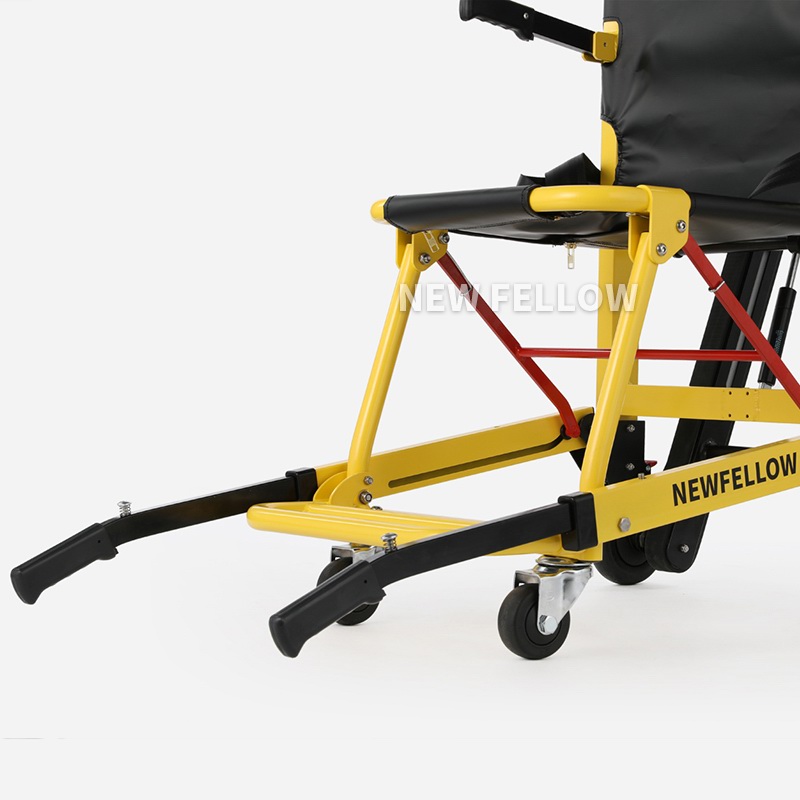

  • There are two short handles at the bottom, which can be used as a stair stretcher.
  • With 4 wear-resistant wheels, the chair can be used as a wheelchair on the ground.
  • There are short handles behind the backrest and flexible handles at the bottom, easy for carrying patients in narrow space.

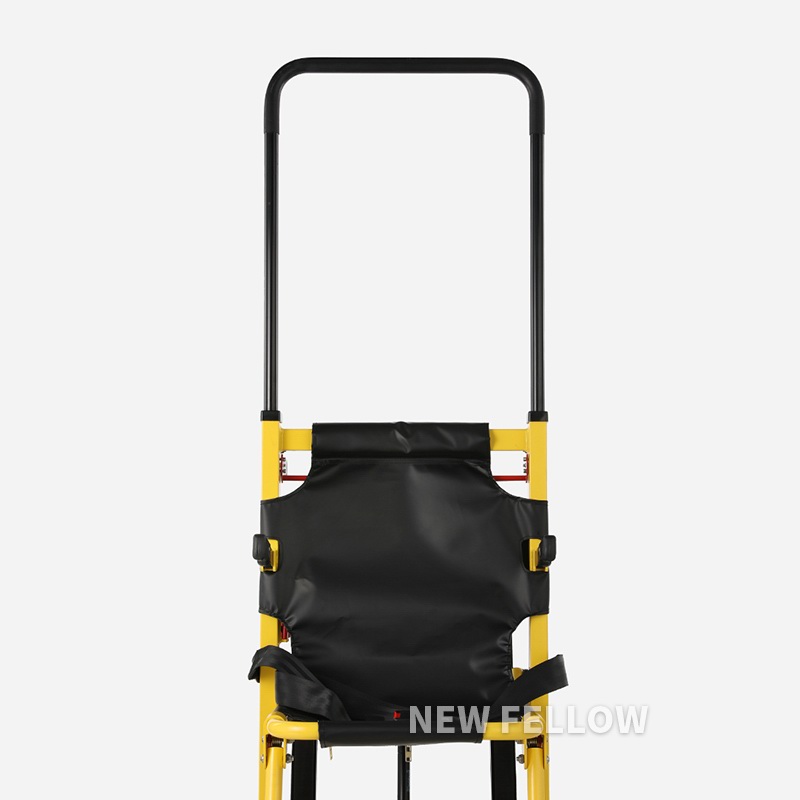

  • The height of the pull rod for operation can be adjusted in 3 levels.
  • It is made of high-strength powder-coated aluminum alloy, sturdy and durable.

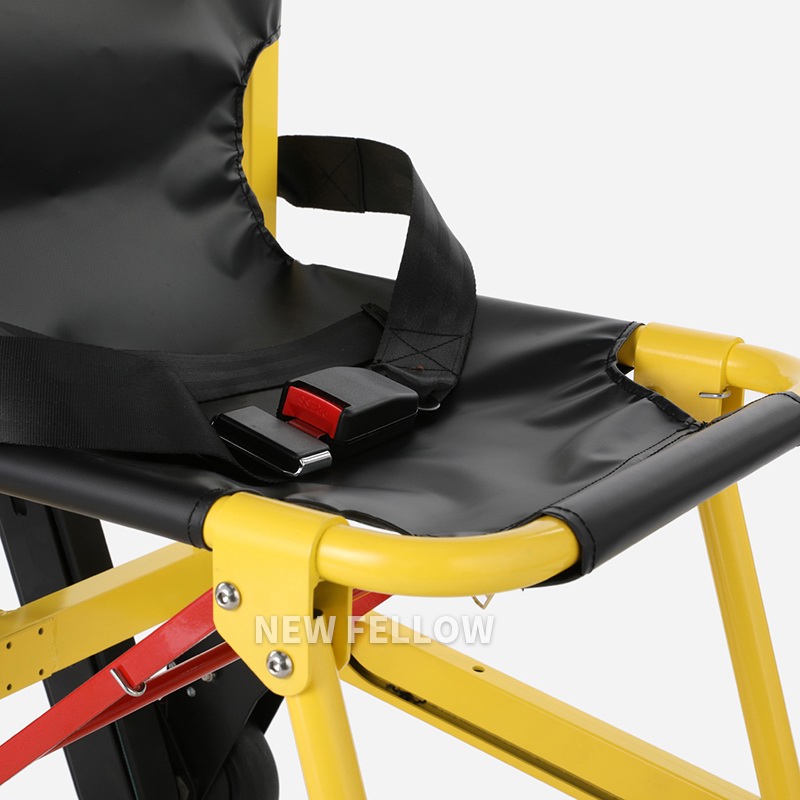

  • PVC seat, easy to clean and disinfect.

Technical parameters

Unfolded Size
(L x W x H)
29.1~47.2” x 20” x 43.3~62.2”74~120 x 51 x 110~158 cm

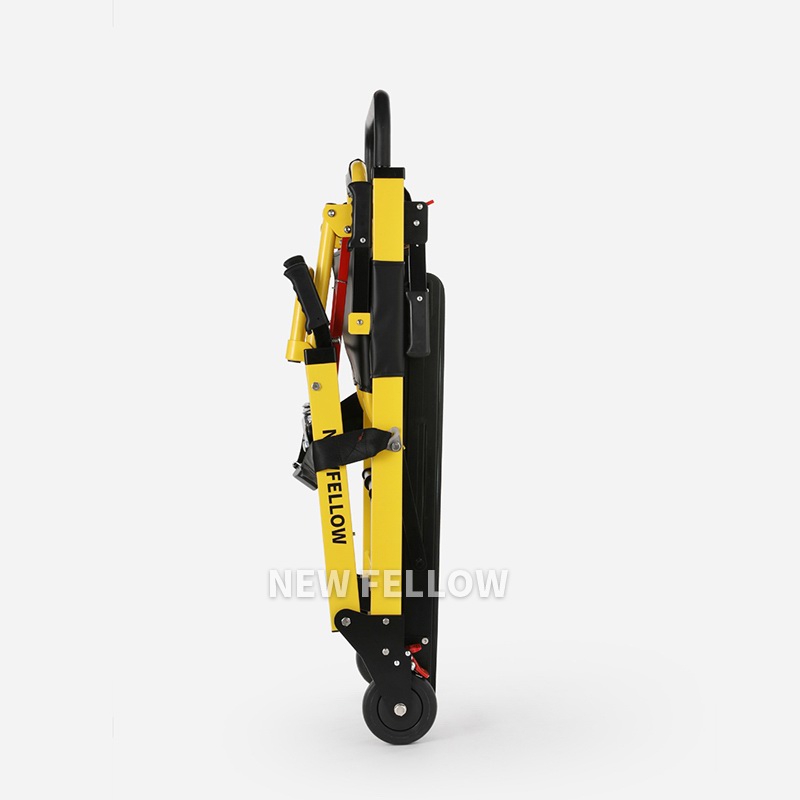

Folded Size43.3” x 20” x 10.6”110 x 51 x 27 cm
Seat Dimensions
(L * W)
17.7” x 16.5”45 x 42 cm
Seating Height
(from ground)
18.948 cm
Track length: 29.5”75 cm
Load-bearing352 pounds160 kg
N.W43.2 pounds19.6 kg
G.W48.5 pounds22 kg
Frame materialAluminium alloy
WarrantyOne year(Limited Warranty)

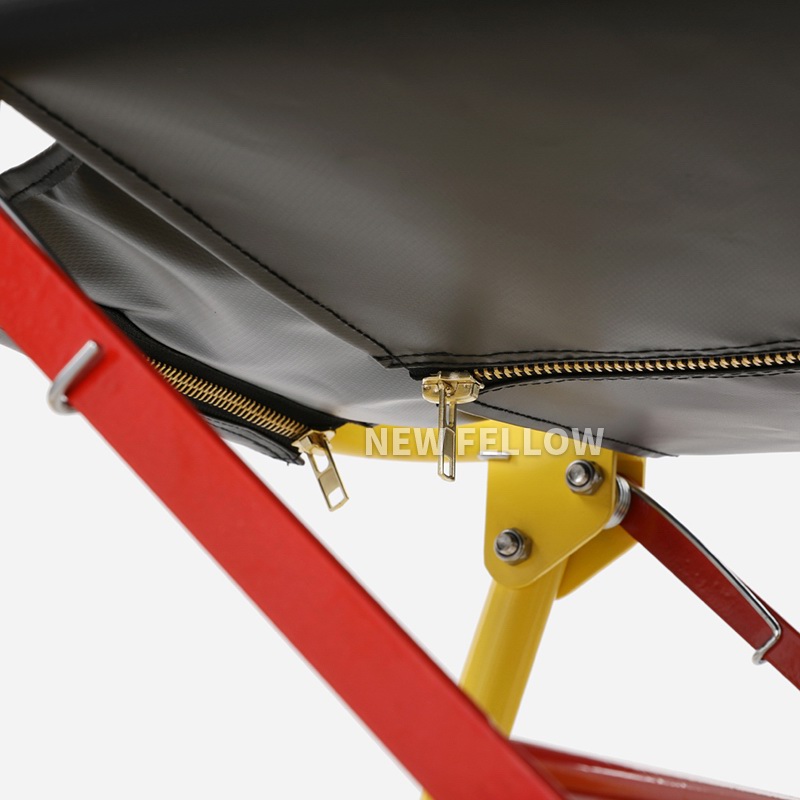

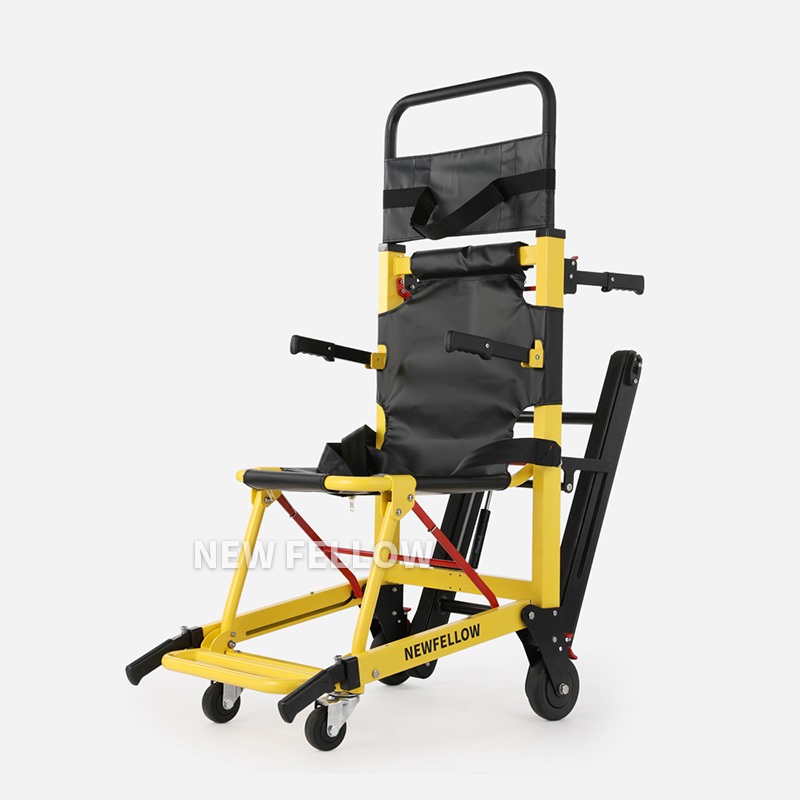

Detail picture and operation

Evacuation Stair Chair NF-W5
Evacuation Stair Chair NF-W5
Evacuation Stair Chair NF-W5
Evacuation Stair Chair NF-W5
Evacuation Stair Chair NF-W5
Evacuation Stair Chair NF-W5
